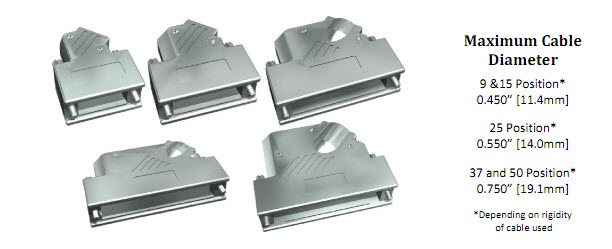

New Die-Cast 45 Degree Exit Covers Our Design Makes It Possible!

45 Degree Exit Hi-Performance
Die-Cast D-Subminiature Connector Covers



Features

  • Die-cast zinc construction reduces EMI/RFI
  • 45 degree exit configuration provides optimum routing schemes
  • Utilizing One-Size-Fits-All strain relief technology for improved efficiency
  • No. 4-40 UNC tapped thru-holes for rapid assembly
  • Integrated thumbscrews for secure and easy mating/retention
  • No. 4-40 UNC mating hardware standard (other UNC and Metric size options available)

Fits D-Subminiature connectors for:

9 position cover

  • 9 position standard male or female crimp or solder cup style
  • 15 position hi-density male or female crimp or solder cup style

15 position cover

  • 15 position standard male or female crimp or solder cup style
  • 26 position hi-density male or female crimp or solder cup style

25 position cover

  • 25 position standard male or female crimp or solder cup style
  • 44 position hi-density male or female crimp or solder cup style

37 position cover

  • 37 position standard male or female crimp or solder cup style
  • 62 position hi-density male or female crimp or solder cup style

50 position cover

  • 50 position standard male or female crimp or solder cup style
  • 78 position hi-density male or female crimp or solder cup style

For further information contact John DiPietro or:

 Click Here For Part Numbers, Drawings and 3D Models
