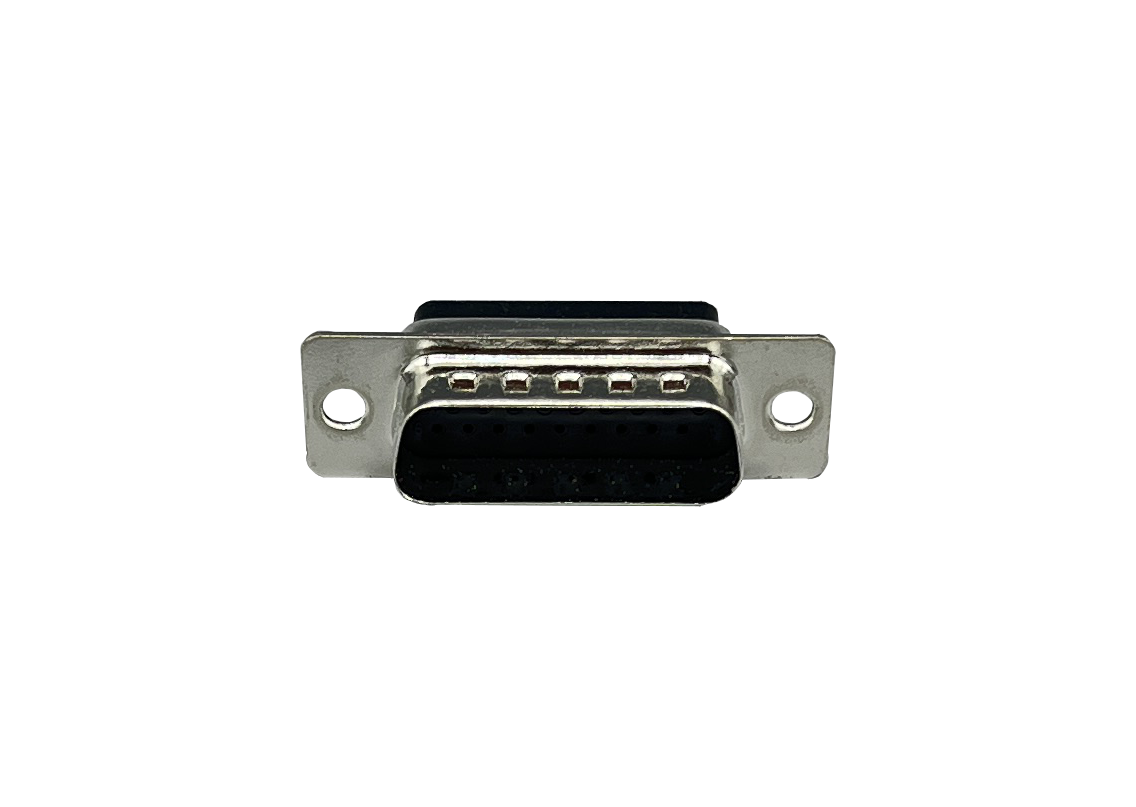

| D-Subminiature Hi-Density Crimp Connectors – DC3 Series | |||
|---|---|---|---|
| SPECIFICATIONS: | |||
| Shell: | steel | ||
| Finish: | reference drawing | ||
| Insulator: | thermoplastic UL94V-0 | ||
| Current Rating: | 3 amps max. | ||
| Voltage Rating: | 250 vac | ||
| Insulation Resistance: | 3000 meg ohm min @ 500 vdc | ||
| Contact Resistance: | <15 milli ohms (mated) | ||
| Temperature Range: | -55° TO +105° C | ||
| Available Sizes: | 15, 26, 44, 62, & 78 position | ||
| Drawing | |
|---|---|
| DRAWING [DOWNLOAD PDF FILE] | |
| Part # | |||
|---|---|---|---|
| XDC3E15PTE | XDC3E15ST | XDC3E26PTE | XDC3E26ST |
| XDC3E44PTE | XDC3E44ST | XDC3E62PTE | XDC3E62ST |
| XDC3E78PTE | XDC3E78ST | ||
